Material ：High modulus Toray T700/T800 carbon fiber
Size ：450,480,510,540,570 mm
Fork ：Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*28c
Brake mount type： Disc brake
Dropout ：Front 12*100mm Rear 12*142mm QR
Test Standard：ISO4210
Warranty ：2 years

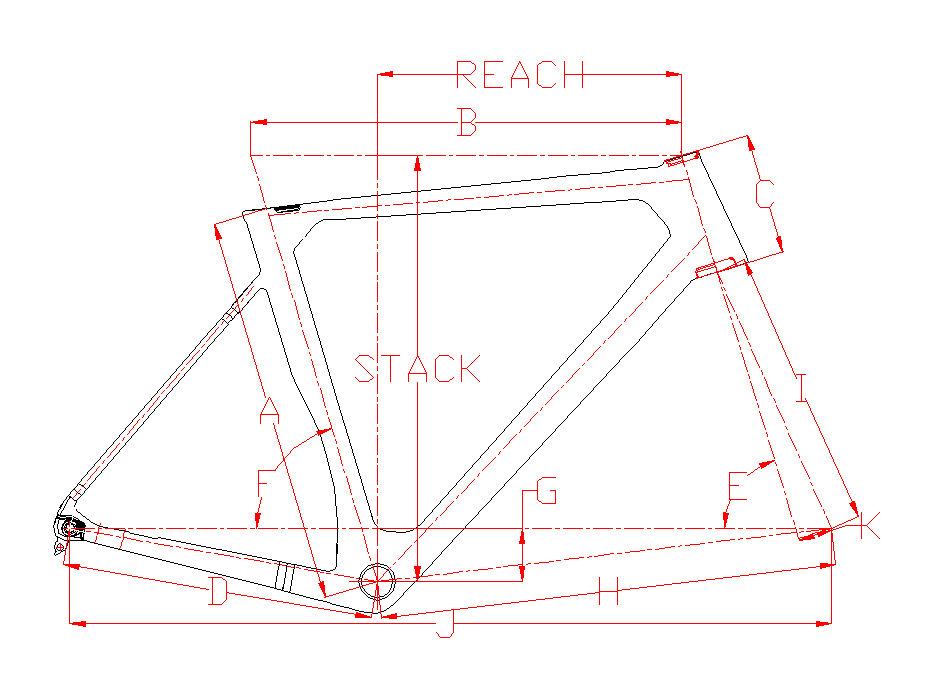

| Size | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 450 | 450 | 525 | 115 | 409 | 72° |
74.5° |
70 | 578 | 368 | 977 | 45 | 383 | 514 |
| 480 | 480 | 542 | 135 |
409 |
72.5° |
74° |
70 |
587 | 368 | 985 | 45 | 389 | 534 |
| 510 | 510 | 565 | 160 |
409 |
73° |
73.5° |
70 |
600 | 368 | 999 | 45 | 399 | 559 |
| 540 | 540 | 583 | 185 |
409 |
73.5° |
73° |
70 |
608 | 368 | 1007 | 45 | 404 | 584 |
| 570 | 570 | 593 | 205 |
409 |
72.5° |
72.5° |
70 |
607 | 368 | 1006 | 45 | 403 | 605 |
