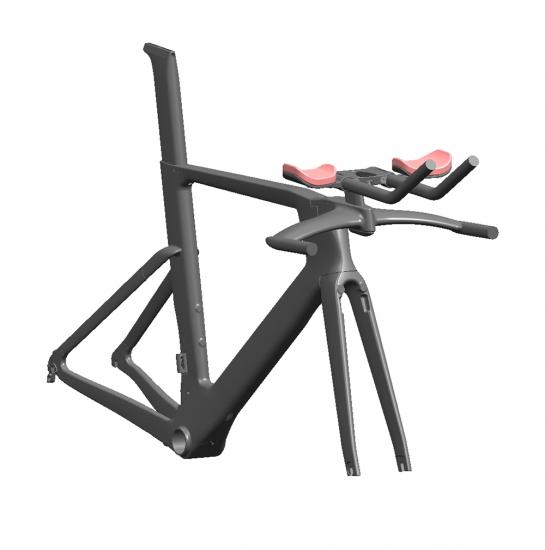

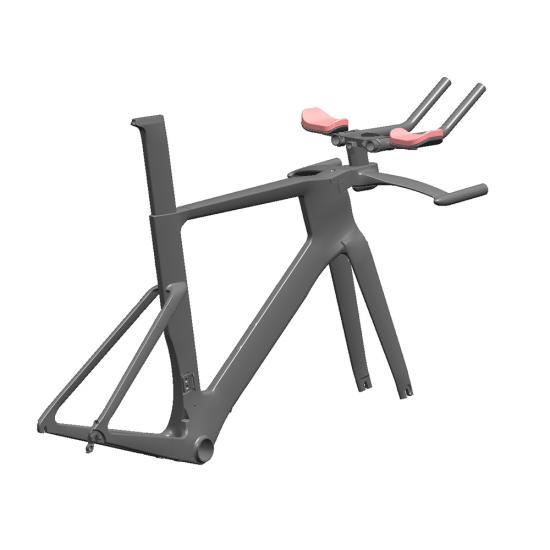

Material ：High modulus Toray T700/T800 carbon fiber
Size ： 430,460,490,520,550,580 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/8"
Bottom bracket： BB386
Max tire clearance ：700*28c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

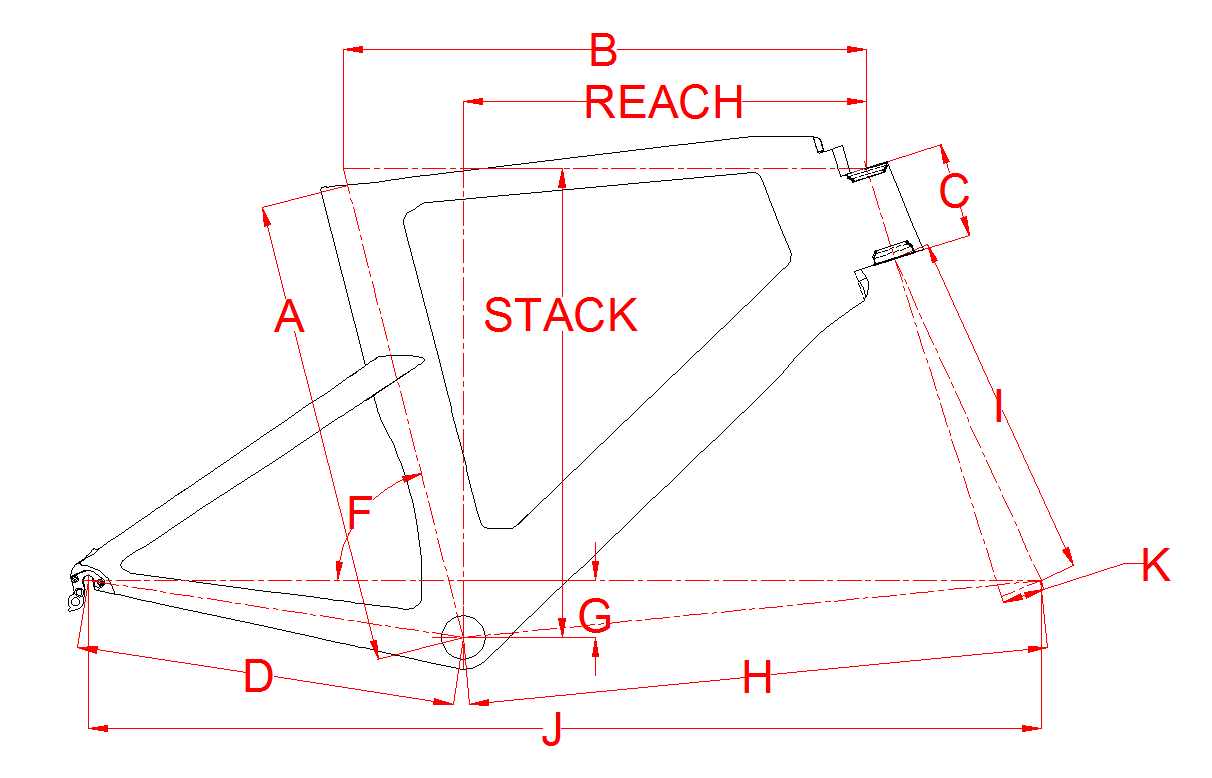

| Size | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 430 | 430 | 500 | 90 | 400 | 72.5° | 78° | 60 | 581 | 370 | 974 | 45 | 397 | 485 |
| 460 | 460 | 515 | 90 | 400 |
72.5° |
78° |
60 | 596 | 370 | 989 | 45 | 412 | 485 |
| 490 | 490 | 530 | 100 | 400 |
72.5° |
78° |
60 | 612 | 370 | 1005 | 45 | 425 | 495 |
| 520 | 520 | 545 | 100 | 400 |
72.5° |
78° |
60 | 626 | 370 | 1019 | 45 | 439 | 495 |
| 550 | 550 | 560 | 100 | 400 |
72.5° |
78° |
60 | 642 | 370 | 1035 | 45 | 455 | 495 |
| 580 | 580 | 575 | 125 | 400 |
72.5° |
78° |
60 | 659 | 370 | 1052 | 45 | 464 | 518.5 |
