Material ：High modulus Toray T700/T800 carbon fiber
Size ： 450,470,490,510,530,550 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*38c
Brake mount type： Disc brake
Dropout ：Front 12*100mm Rear 12*142mm
Test Standard：ISO4210
Warranty ：2 years

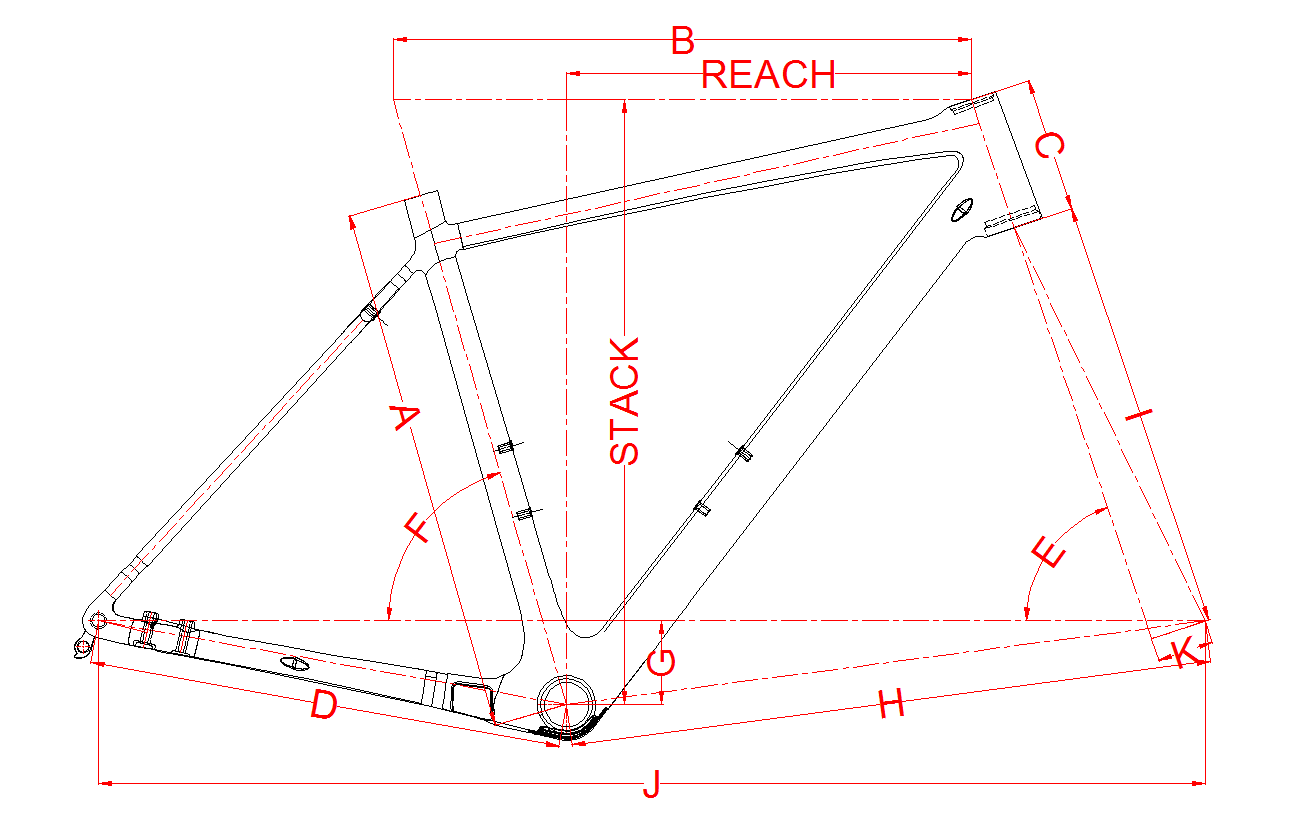

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 450 | 450 | 510 | 100 | 440 | 70° | 75° | 82.5 | 593 | 400 | 1019 | 52 | 367 | 535 |
| 470 | 470 | 520 | 110 | 440 | 70.5° | 74.5° | 77.5 | 594 | 400 | 1022 | 52 | 375 | 541 |
| 490 | 490 | 535 | 125 | 440 | 71.5° | 74° | 77.5 | 596 | 400 | 1024 | 52 | 374 | 560 |
| 510 | 510 | 555 | 145 | 440 |
71.5° |
73° | 75 | 606 | 400 | 1035 | 52 | 379 | 576 |
| 530 | 530 | 570 | 160 | 440 |
71.5° |
73° | 75 | 621 | 400 | 1050 | 52 | 390 | 591 |
| 550 | 550 | 585 | 185 | 440 |
71.5° |
72.5° | 72.5 | 631 | 400 | 1061 | 52 | 392 | 612 |
