Material ：High modulus Toray T700/T800 carbon fiber
Size ： 510,525,540,560,580,595 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"

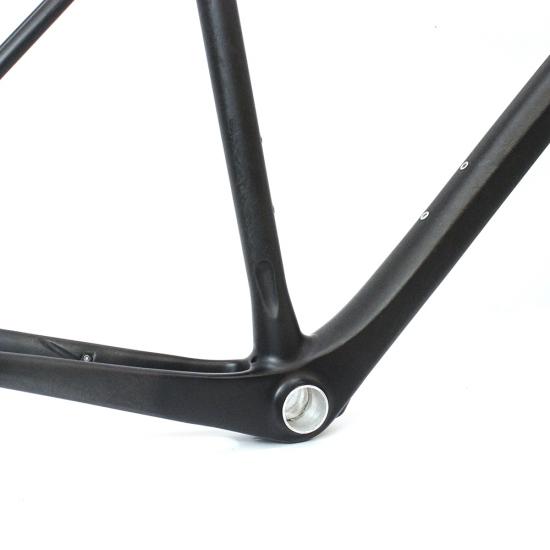

Bottom bracket： FF30
Max tire clearance ：700*25c
Brake mount type： Disc brake
Dropout ：Front 9*100mm Rear QR 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

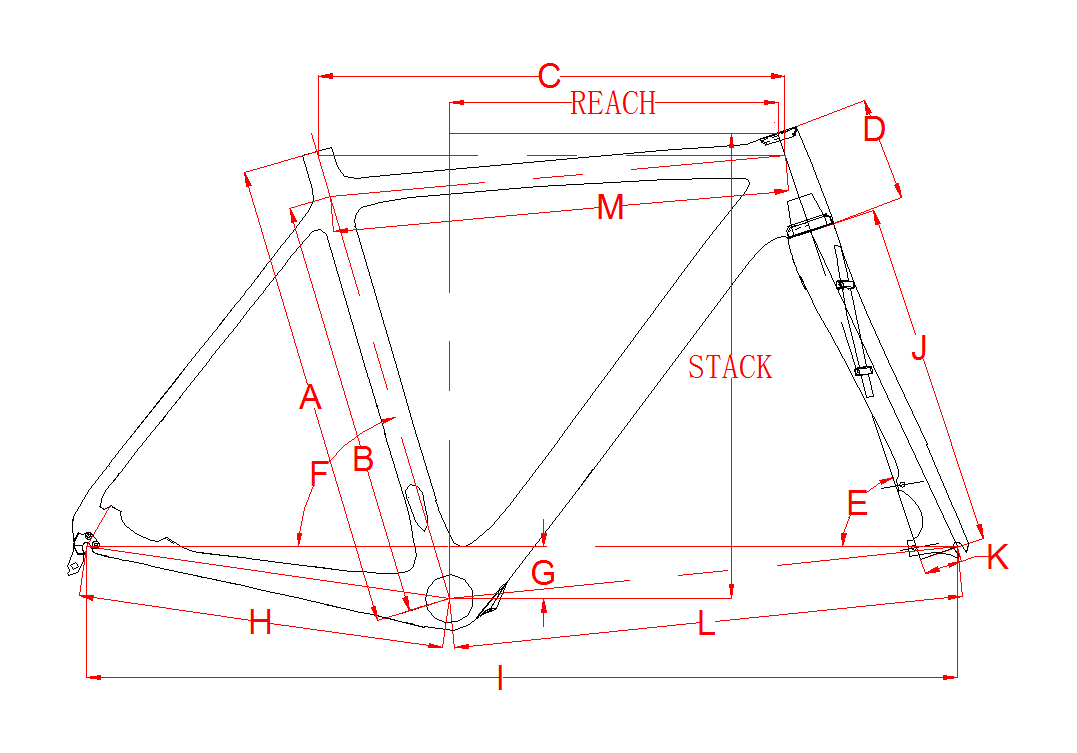

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 510 | 510 | 455 | 510 | 90 | 71.5° | 74° | 60 | 425 | 981 | 400 | 45 | 363 | 510 |
| 525 | 525 | 470 | 525 | 100 |
71.5° |
74° | 60 | 425 | 998 | 400 | 45 | 376 | 520 |
| 540 | 540 | 486 | 540 | 120 |
71.5° |
73.5° | 60 | 425 | 1009 | 400 | 45 | 380 | 539 |
| 560 | 560 | 505 | 559 | 140 | 72° | 73.5° | 60 | 425 | 1024 | 400 | 45 | 394 | 560 |
| 580 | 580 | 525 | 580 | 160 | 72° | 73° | 60 | 425 | 1039 | 400 | 45 | 403 | 578 |
| 595 | 595 | 540 | 595 | 190 | 72.5° | 72.5° | 60 | 425 | 1044 | 400 | 45 | 403 | 609 |
