Material ：High modulus Toray T700/T800 carbon fiber
Size ： 460,480,510,540,570mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*25c
Brake mount type： Disc brake
Dropout ：Front 12*100mm Rear 12*142mm
Test Standard：ISO4210
Warranty ：2 years

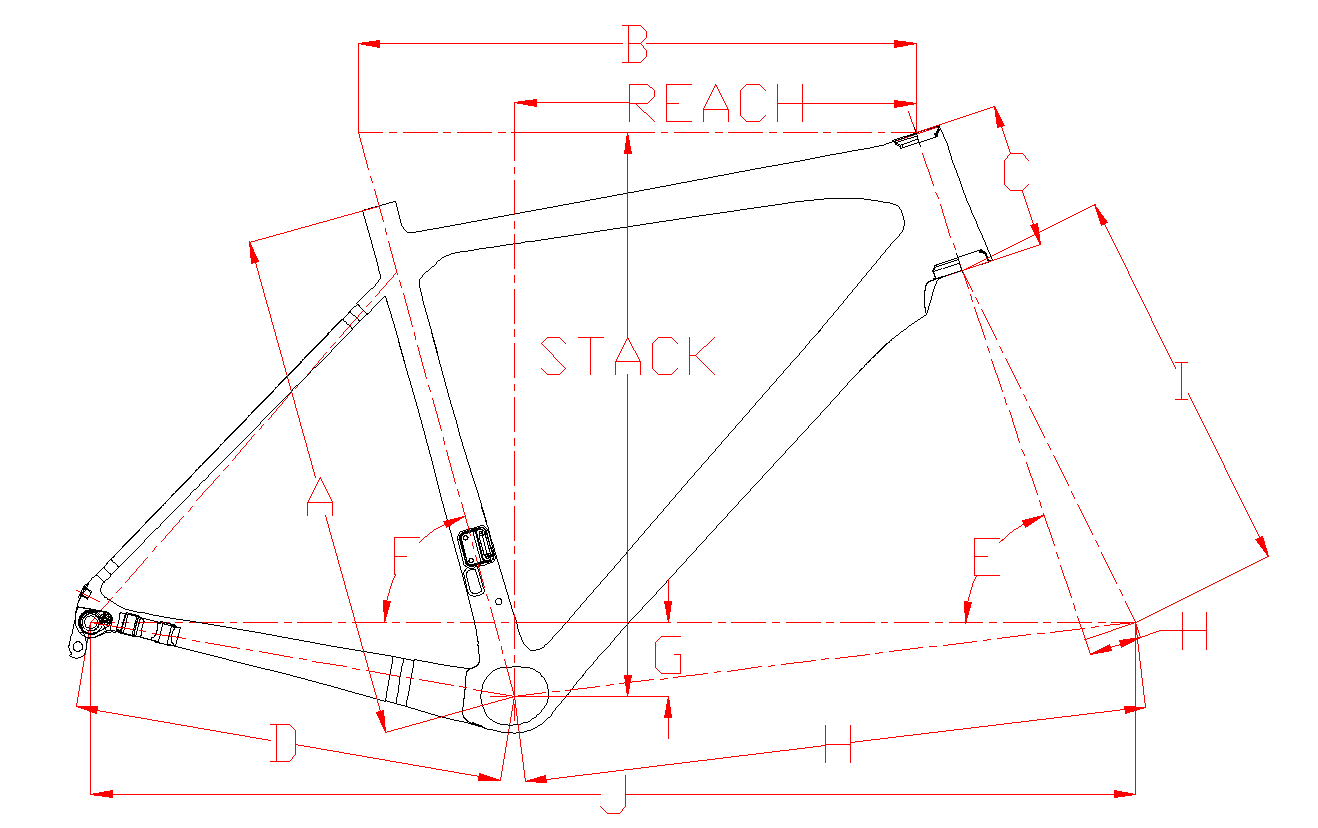

| Size | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 460 | 460 | 510 | 114 | 406 | 71° | 75° | 70 | 573 | 370 | 969 | 45 | 370 | 508 |
| 480 | 480 | 526 | 137 | 406 | 71.5° | 74.5° | 70 | 589 |
370 |
986 | 45 | 378 | 532 |
| 510 | 510 | 545 | 158 | 406 | 72° | 74° | 70 | 595 |
370 |
990 | 45 | 385 | 557 |
| 540 | 540 | 565 | 178 | 410 | 73° | 73.5° | 70 | 600 |
370 |
1000 | 45 | 394 | 578 |
| 570 | 570 | 585 | 202 | 410 | 73° | 73.5° | 70 | 621 |
370 |
1020 | 45 | 408 | 601 |
