Material ：High modulus Toray T700/T800 carbon fiber
Size ： 16.5,17.5,18.5,20 inch
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB92
Max tire clearance ：29*2.25in
Brake mount type： Disc brake
Dropout ：Front 12*148mm
Test Standard：ISO4210
Warranty ：2 years

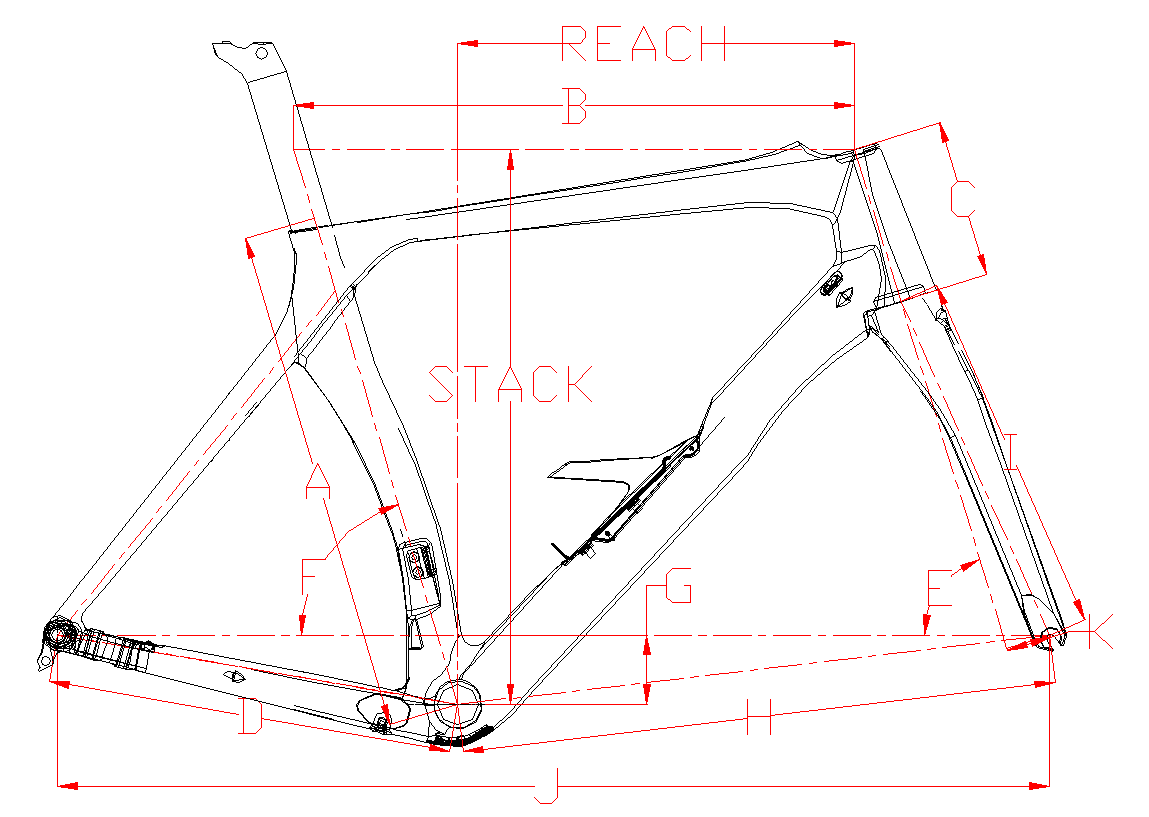

| Size | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 16.5 | 425 | 565 | 105 | 435 | 71° | 74.3° | 62 | 608 | 505 | 1035 | 39 | 371 | 628 |
| 17.5 | 450 | 595 | 110 | 435 |
71° |
74.3° |
62 | 637 | 505 | 1065 | 39 | 398 | 638 |
| 18.5 | 475 | 620 | 125 | 435 |
71° |
74.3° |
62 | 662 | 505 | 1090 | 39 | 419 | 647 |
| 20 | 510 | 637 | 130 | 435 |
71° |
74.3° |
62 | 679 | 505 | 1107 | 39 | 434 | 652 |
