Material ：High modulus Toray T700/T800 carbon fiber
Size ： 16.5,18,19 inch
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB92
Max tire clearance ：29*2.25 inch
Brake mount type： Disc brake
Dropout ：Front 12*142mm
Test Standard：ISO4210
Warranty ：2 years

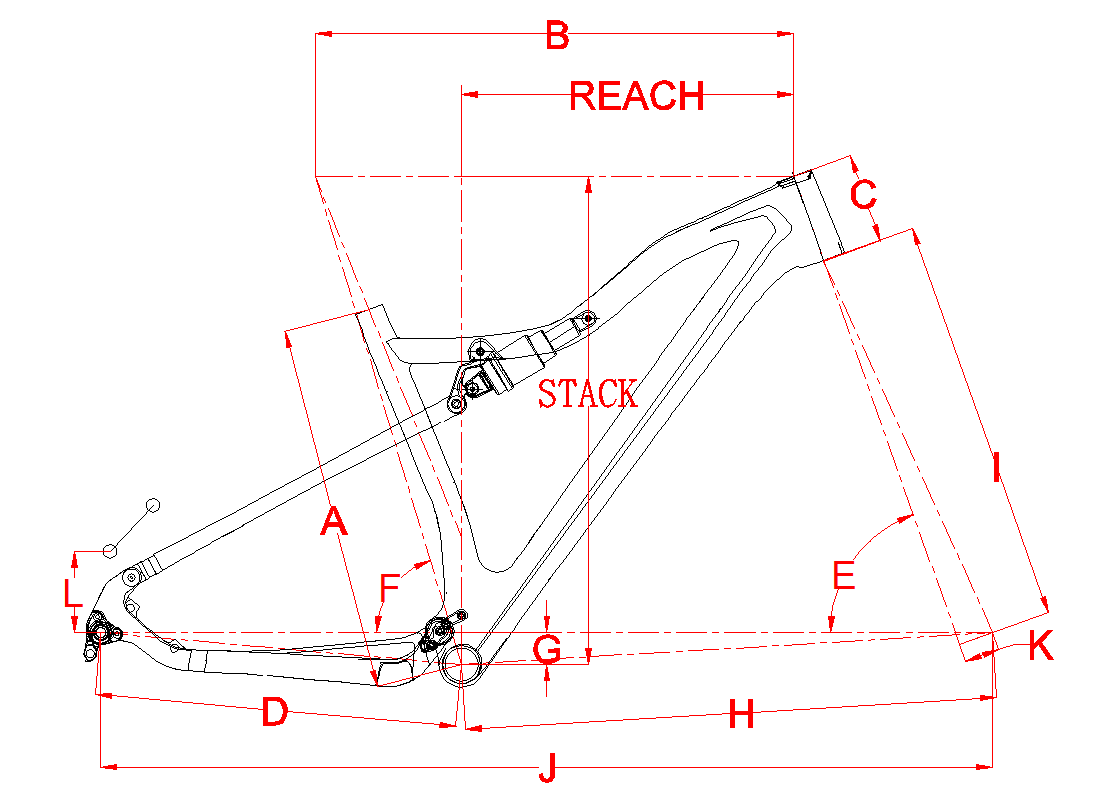

| SIZE | A | B | C | D | E | F | G | H | I | J | K | L | REACH | STACK |
| 16.5" | 420 | 565 | 100 | 450 | 70.5° | 73.5° | 40 | 632 | 510 | 1079 | 45 | 100 | 388 | 591 |
| 18" | 456 | 595 | 110 | 450 | 70.5° |
73.5° |
40 | 662 |
510 |
1109 | 45 | 100 | 413 | 607 |
| 19" | 480 | 620 | 125 | 450 | 70.5° |
73.2° |
40 | 687 | 511 | 1134 |
45 |
100 | 432 | 621 |
