Material ：High modulus Toray T700/T800 carbon fiber
Size ： 17.5,18.5,19.5 inch

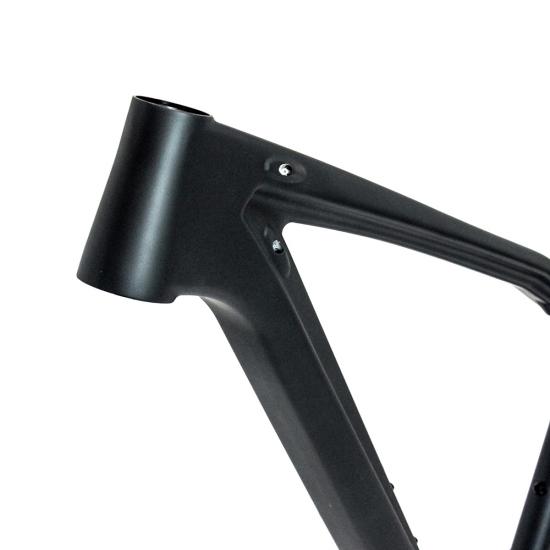

Headtube ：Straight 1 1/8" to 1 1/2"

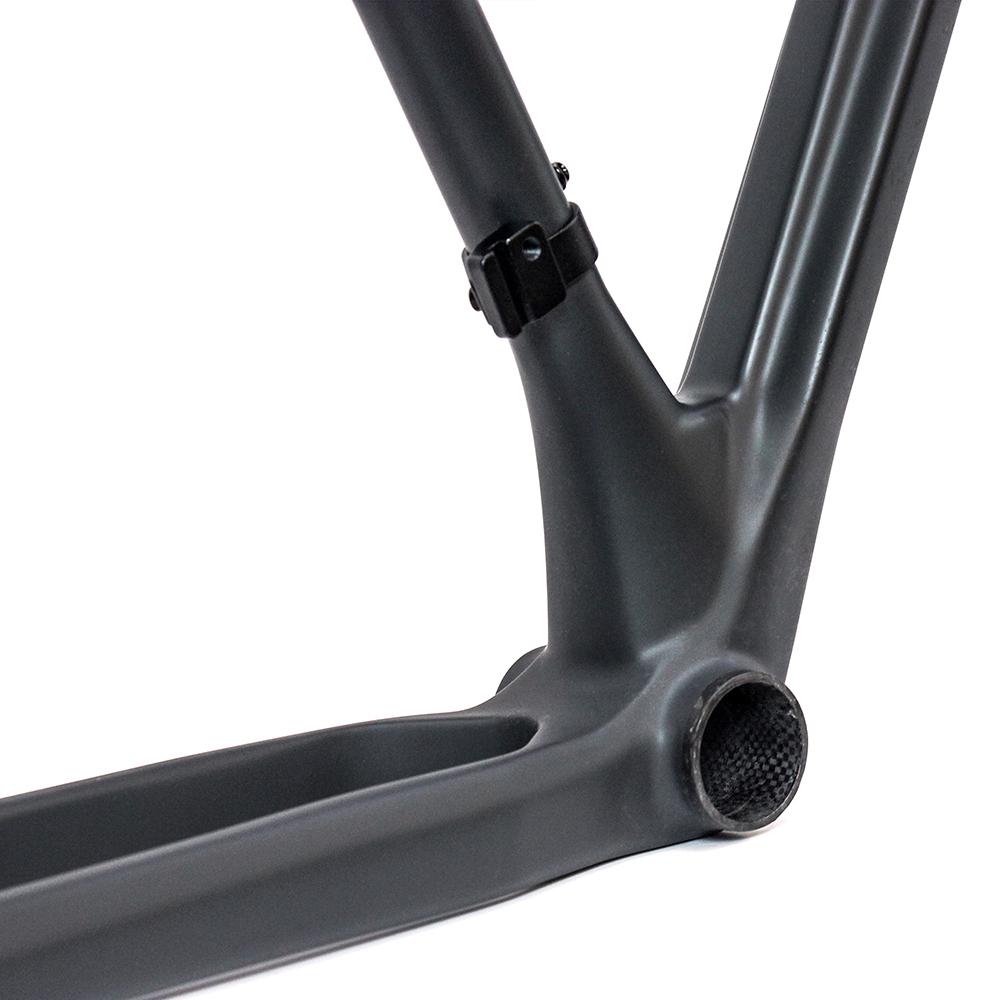

Bottom bracket： BB92
Max tire clearance ：29*2.25 inch
Brake mount type： Disc brake
Dropout ：Front 12*142mm
Test Standard：ISO4210
Warranty ：2 years
| SIZE | A | C | D | E | F | G | H | I | J | K | L | REACH | STACK |
| 17.5" | 495 | 620 | 125 | 71.5° | 74.3° | 60 | 440 | 1111 | 504 | 39 | 678 | 439 | 644 |
| 18.5" | 470 | 590 | 118 | 71.5° |
74.3° |
60 | 440 | 1063 | 504 | 39 | 631 | 393 | 644 |
| 19.5" | 446 | 562 | 105 | 71.5° |
74.5° |
60 | 440 | 1055 | 504 |
39 |
623 | 389 | 625 |
