Material ：High modulus Toray T700/T800 carbon fiber
Size ： 420,450,480,510,540mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*25c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

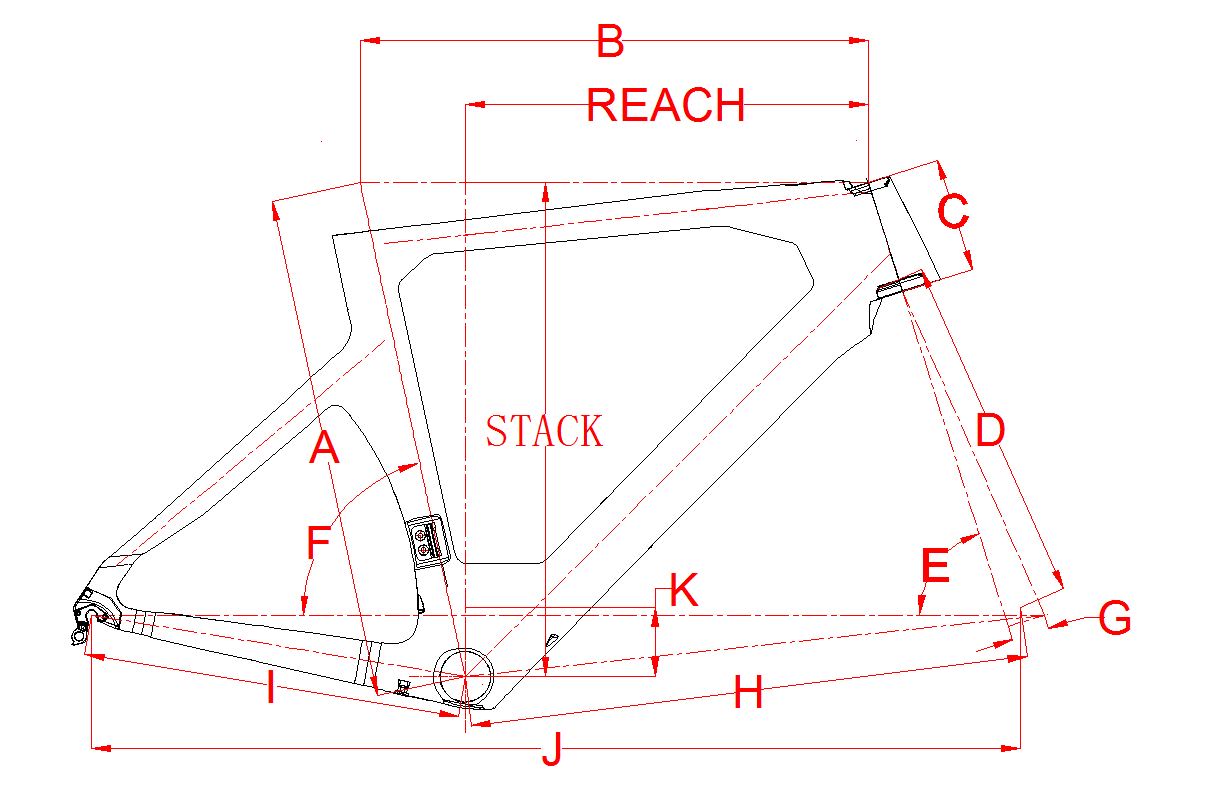

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 420 | 420 | 505 | 100 | 370 | 72.5° | 78° | 40 | 582 | 339 | 972 | 65 | 398 | 502 |
| 450 | 450 | 520 | 110 | 370 |
72.5° |
78° |
40 | 598 | 339 | 988 | 65 | 411 | 511 |
| 480 | 480 | 535 | 120 | 370 |
72.5° |
78° |
40 | 614 | 339 | 1004 | 65 | 425 | 521 |
| 510 | 510 | 550 | 130 | 370 |
72.5° |
78° |
40 | 629 | 339 | 1020 | 65 | 437 | 530 |
| 540 | 540 | 565 | 140 | 370 |
72.5° |
78° |
40 | 645 | 339 | 1036 | 65 | 450 |
540 |
