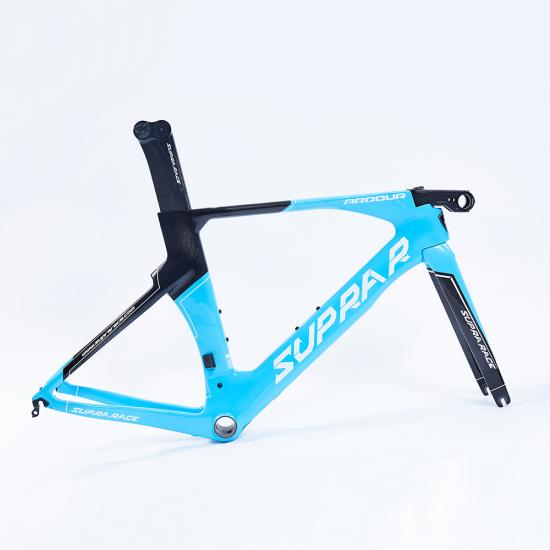

Material ：High modulus Toray T700/T800 carbon fiber
Size ： 420,450,480,510,540,570 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*28c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

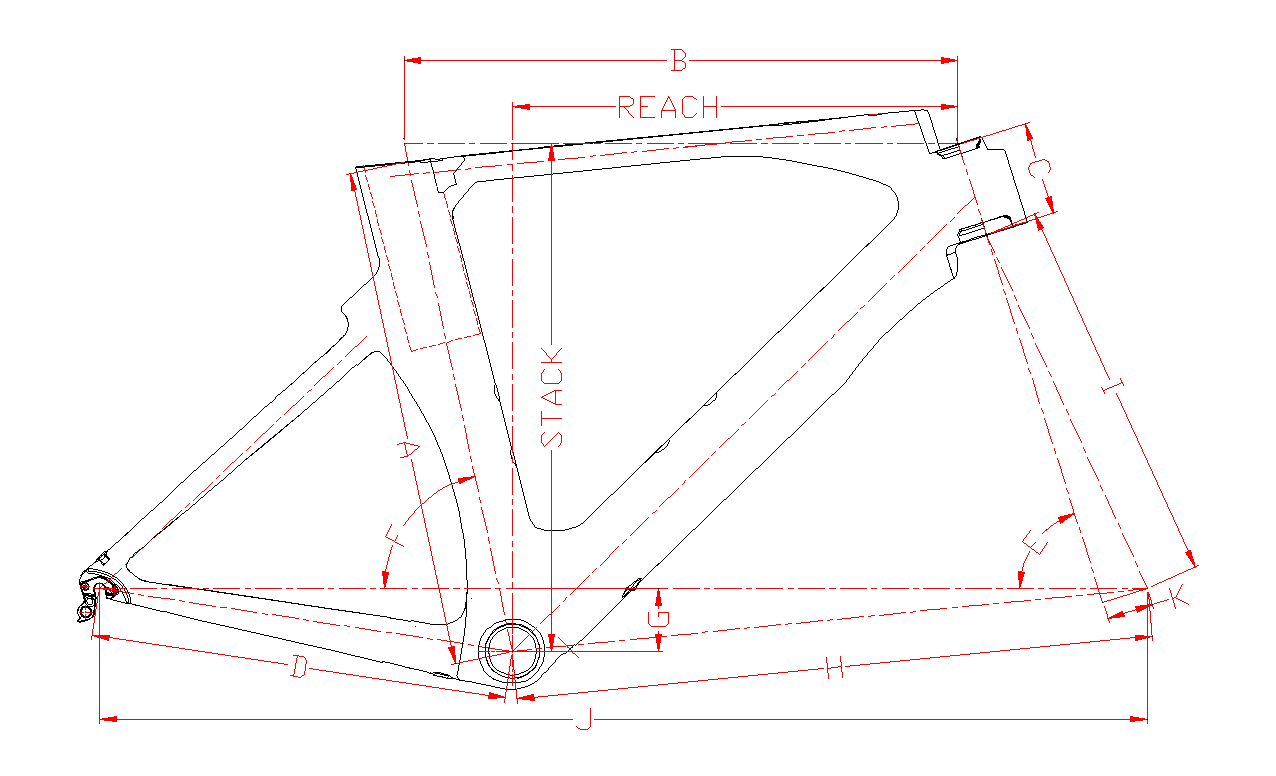

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 420 | 420 | 500 | 90 | 400 | 72.5° | 78° | 69 | 580 | 370 | 970 | 45 | 395 | 494 |
| 450 | 450 | 515 | 90 | 400 |
72.5° |
78° |
69 | 595 | 370 | 985 | 45 | 410 | 494 |
| 480 | 480 | 530 | 90 | 400 |
72.5° |
78° |
69 | 611 | 370 | 1004 | 45 | 427 | 494 |
| 510 | 510 | 545 | 100 | 400 |
72.5° |
78° |
69 | 626 | 370 | 1016 | 45 | 438 | 504 |
| 540 | 540 | 560 | 100 | 400 |
72.5° |
78° |
69 | 641 | 370 | 1031 | 45 | 453 | 504 |
| 570 | 570 | 575 | 125 | 400 |
72.5° |
78° |
69 | 658 | 370 | 1048 | 45 | 462 | 527 |
