Material ：High modulus Toray T700/T800 carbon fiber
Size ： 480,510,530,550,570 mm
Fork ： Karbon Saber specify carbon fork

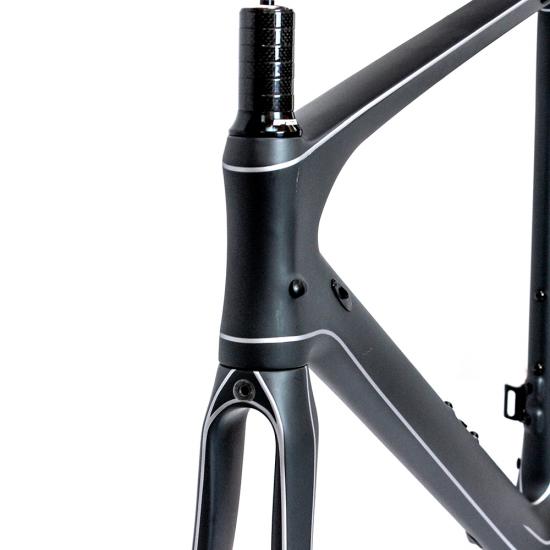

Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*25c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

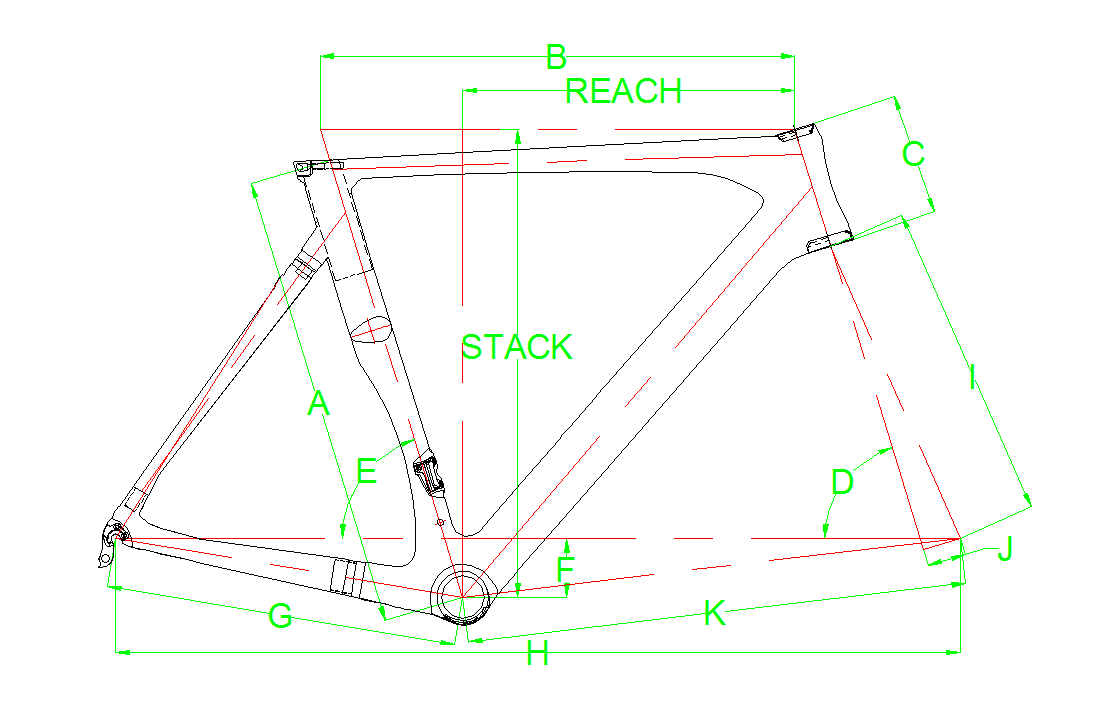

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
|
480 |
480 | 511 | 112 | 71.5° | 74.5° | 68 | 405 | 964 | 370 | 45 | 569 | 370 | 507 |
| 510 | 510 | 530 | 127 | 72.5° | 74° | 68 | 405 | 970 | 370 | 45 | 575 | 379 | 526 |
| 530 | 530 | 550 | 142 | 73° | 73° | 68 | 405 | 979 | 370 | 45 | 581 | 385 | 542 |
| 550 | 550 | 565 | 155 | 73.2° | 72.5° | 68 | 405 | 983 | 370 | 45 | 587 | 389 | 557 |
| 570 | 570 | 580 | 170 | 73.5° | 72° | 68 | 405 | 990 | 370 | 45 | 594 | 394 | 571 |
