Material ：High modulus Toray T700/T800 carbon fiber
Size ： 450,470,490,515,535,555 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Custom
Bottom bracket： BB86.5
Max tire clearance ：700*28c
Brake mount type： Disc brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

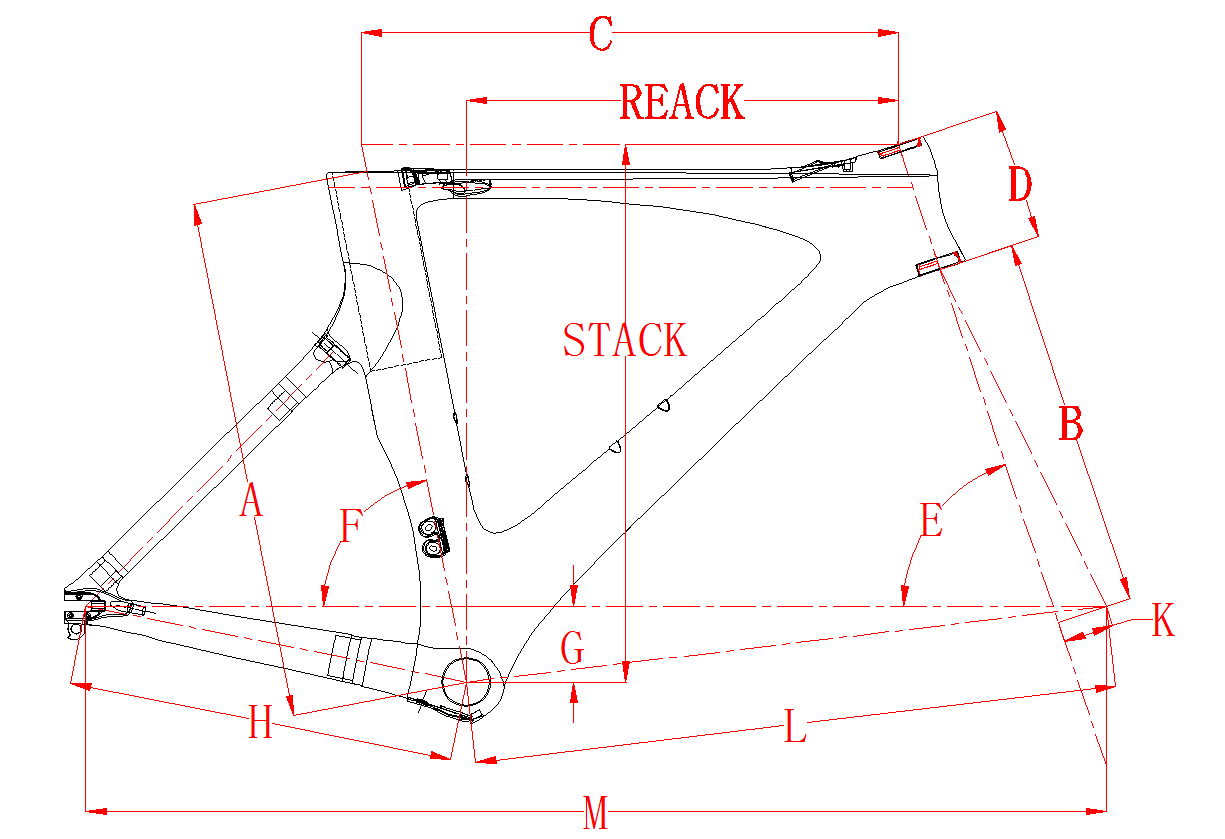

| SIZE | A | B | C | D | E | F | M | G | H | K | L | REACH | STACK |
| 450 | 453 | 370 | 477 | 70 | 71.5° | 79° | 973 | 60 | 403 | 50 | 578 | 387 | 462 |
| 470 | 473 | 370 | 479 | 90 |
71.5° |
79° |
951 | 75 | 382 | 50 | 581 | 384 | 491 |
| 490 | 492 | 370 | 509 | 110 |
71.5° |
79° |
983 | 75 | 382 | 50 | 613 | 410 | 510 |
| 515 | 515 | 370 | 529 | 130 |
71.5° |
79° |
1006 | 75 | 382 | 50 | 636 | 426 | 530 |
| 535 | 538 | 370 | 544 | 150 | 72° |
79° |
1009 | 75 | 382 | 44 | 638 | 436 | 555 |
| 555 | 558 | 370 | 559 | 171 |
72° |
79° |
1026 | 75 | 382 | 44 | 656 | 448 | 575 |
