Material ：High modulus Toray T700/T800 carbon fiber
Size ： 440,470,500,540 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*28c
Brake mount type： Dsic brake
Dropout ：Front 12*100mm Rear 12*142mm
Test Standard：ISO4210
Warranty ：2 years

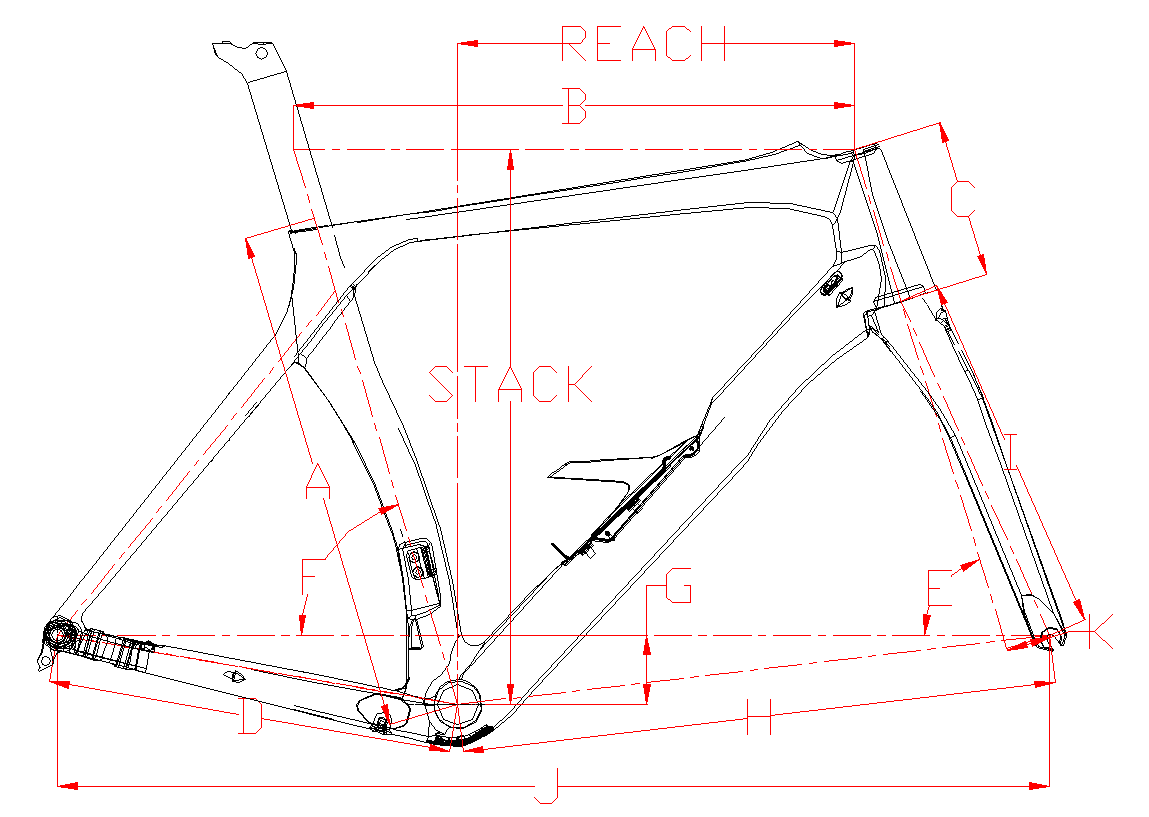

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 440 | 440 | 525 | 115 | 409 | 72° | 74.5° | 70 | 579 | 368 | 978 | 45 | 387 | 517 |
| 470 | 470 | 542 | 135 | 409 | 72.5° | 74° | 70 | 587 | 368 | 986 | 45 | 388 | 538 |
| 500 | 500 | 565 | 159 | 409 | 73° | 73.5° | 70 | 600 | 368 | 999 | 45 | 399 | 558 |
| 540 | 540 | 583 | 185 | 409 | 74° | 72.5° | 70 | 597 | 368 | 996 | 45 | 397 | 590 |
