Material ：High modulus Toray T700/T800 carbon fiber
Size ： 460,490,520,550,580 mm
Fork ： Karbon Saber specify carbon fork

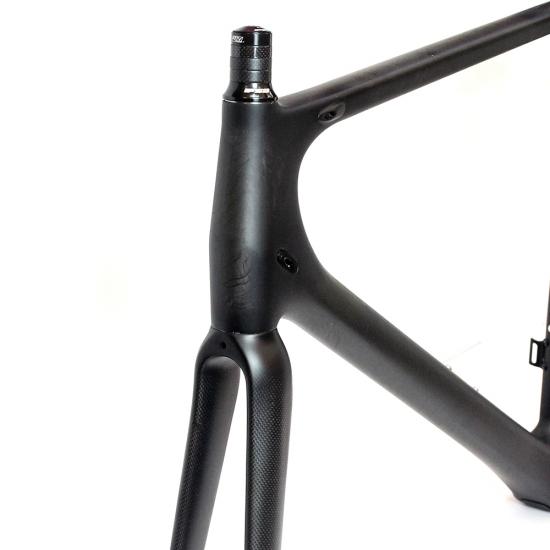

Headtube ：Straight 1 1/8" to 1 1/2"

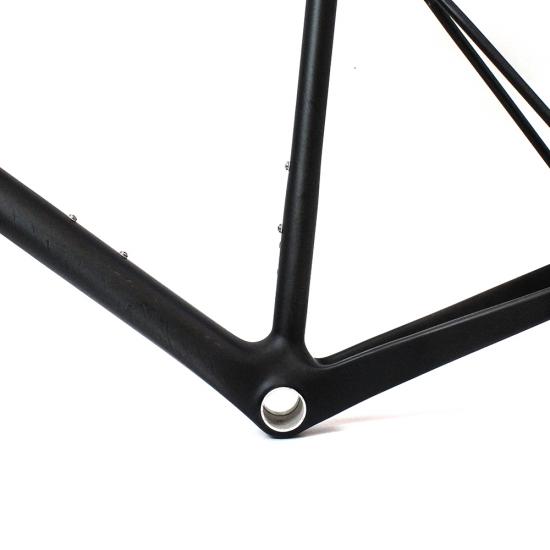

Bottom bracket： BB86.5/PF30
Max tire clearance ：700*25c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

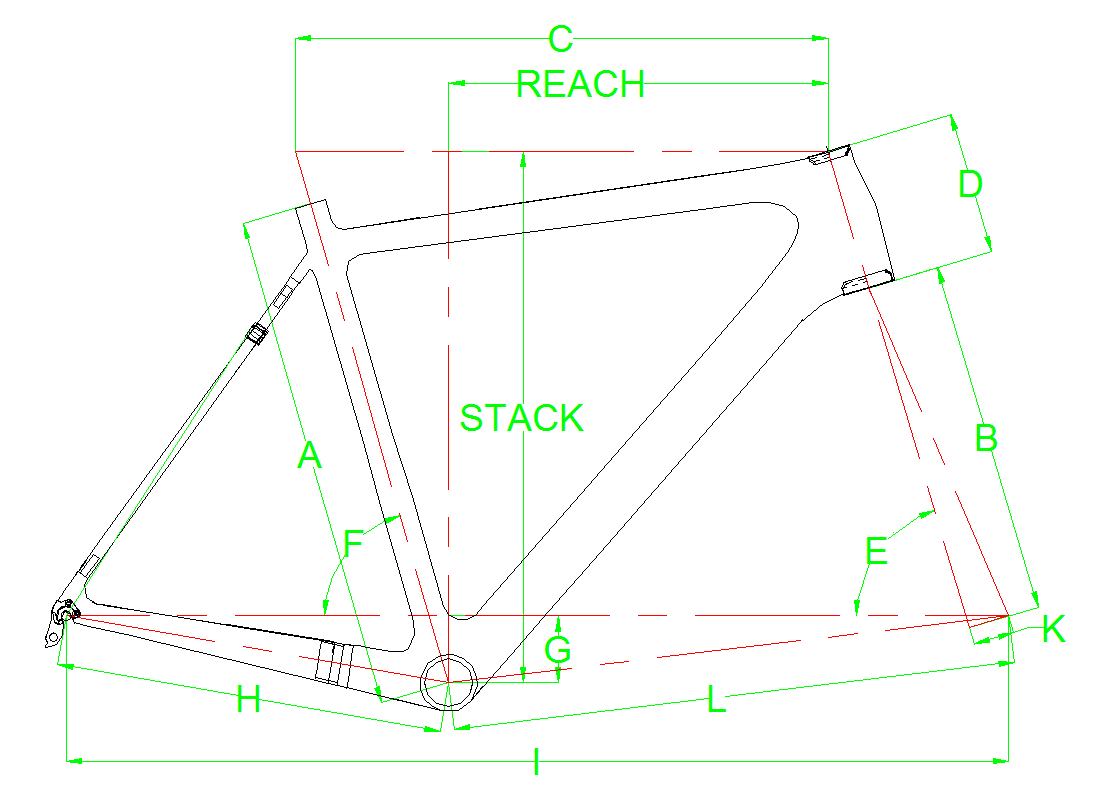

| SIZE | A | B | C | D | E | F | G | H | I | L | K | REACH | STACK |
| 460 | 460 | 370 | 520 | 120 | 72° | 75° | 70 | 405 | 971 | 577 | 43 | 380 | 523 |
| 490 | 490 | 370 | 536 | 130 | 73° | 74.4° | 70 | 405 | 973 | 578 | 43 | 386 | 535 |
| 520 | 520 | 370 | 556 | 149 | 73.5° | 74° | 70 | 405 | 983 | 588 | 43 | 396 | 554 |
| 550 | 550 | 370 | 570 | 170 | 73.8° | 73.5° | 70 | 405 | 990 | 595 | 43 | 400 | 574 |
| 580 | 580 | 370 | 585 | 190 | 74° | 73° | 70 | 405 | 997 | 603 | 43 | 403 | 595 |
