Material ：High modulus Toray T700/T800 carbon fiber
Size ： 450,480,510,540,570 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*25c
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

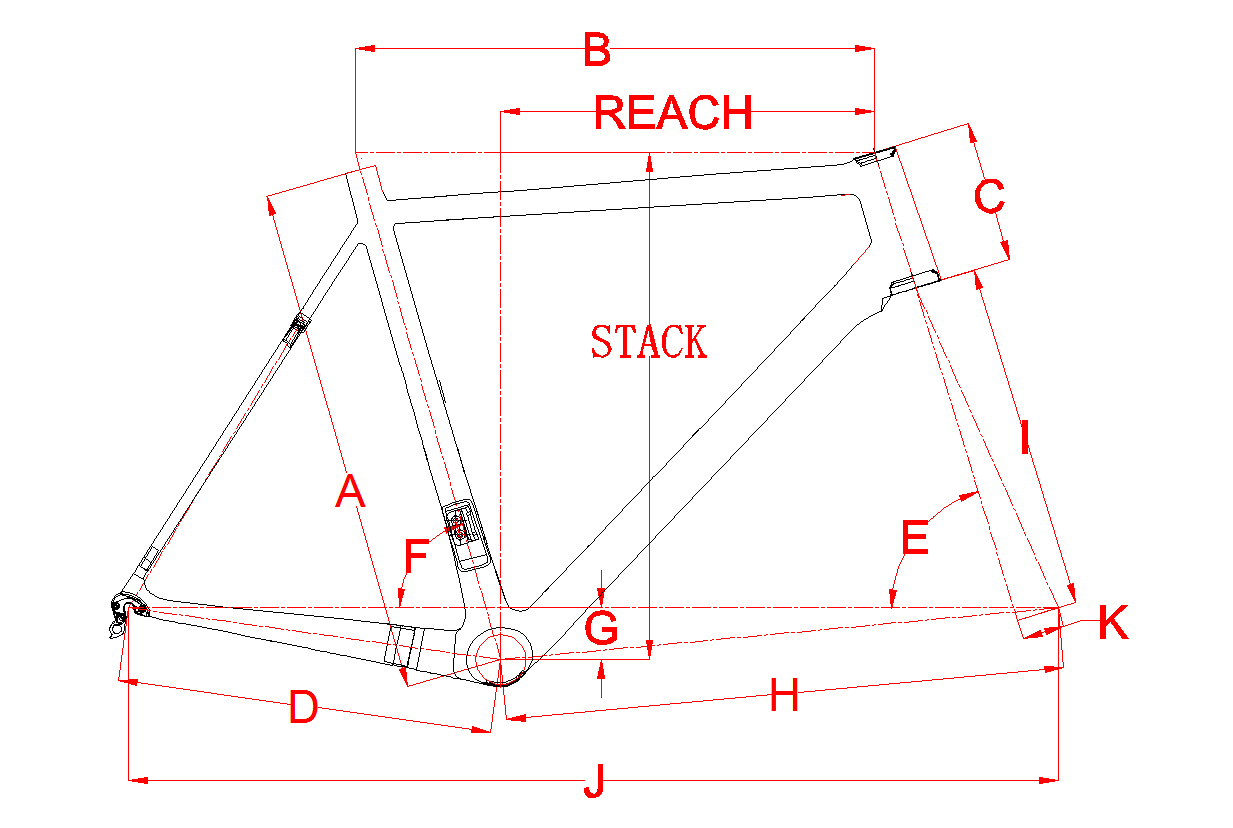

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 450 | 450 | 505 | 115 | 398 | 71.5° | 75° | 55 | 570 | 370 | 962 | 45 | 371 | 499 |
| 480 | 480 | 515 | 125 | 398 | 72° | 74.5° | 55 | 571 | 370 | 963 | 45 | 373 | 510 |
| 510 | 510 | 530 | 136 | 398 | 72.5° | 74.5° | 55 | 581 | 370 | 973 | 45 | 384 | 522 |
| 540 | 540 | 550 | 150 | 398 | 73° | 74° | 55 | 593 | 370 | 984 | 45 | 396 | 537 |
| 570 | 570 | 570 | 175 | 398 |
73° |
73.5° | 55 | 608 | 370 | 1000 | 45 | 403 | 561 |
