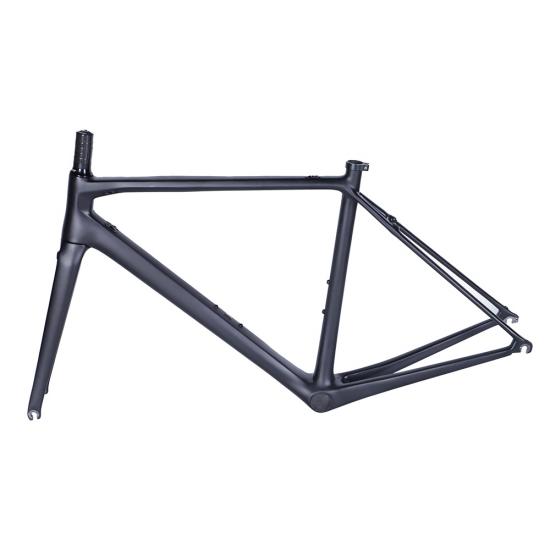

Material ：High modulus Toray T700/T800 carbon fiber
Size ： 450,470,490,520,550,580 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*28C
Brake mount type： Rim brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

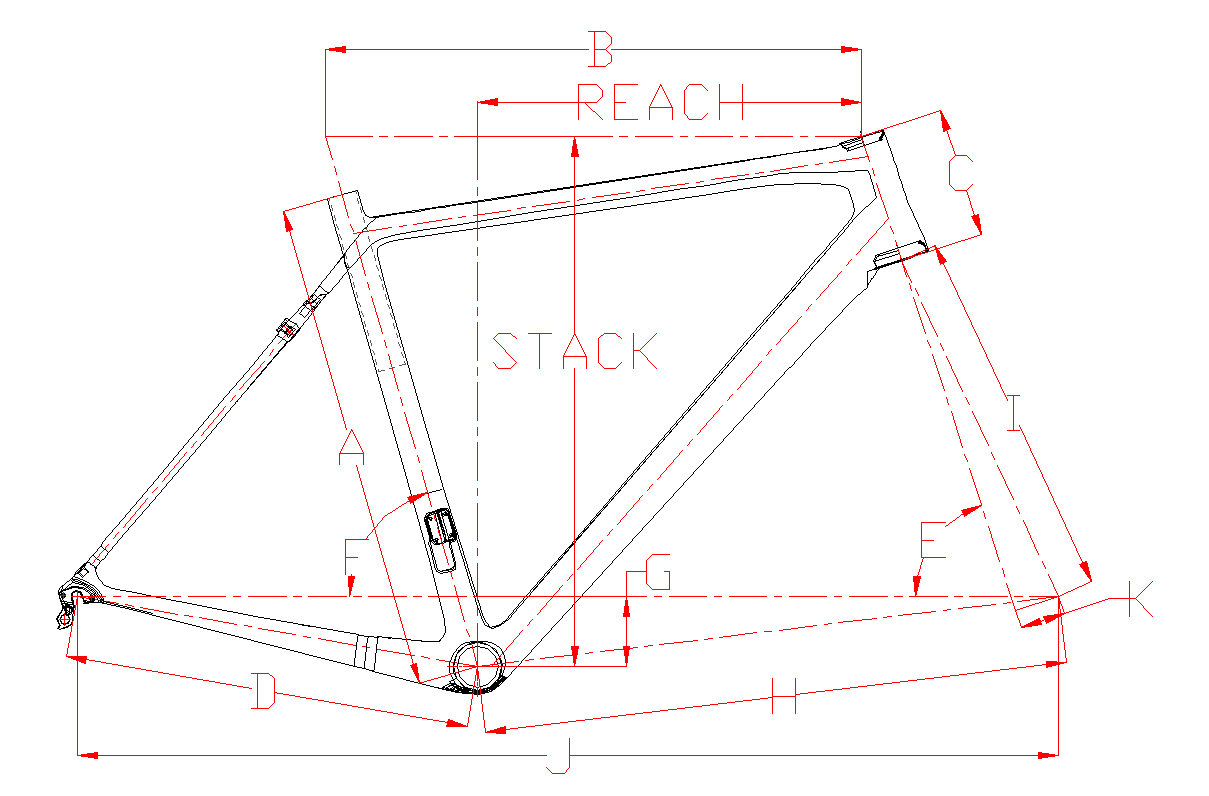

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 450 | 450 | 505 | 100 | 406 | 70.5° | 75° | 70 | 575 | 370 | 971 | 45 | 372 | 495 |
| 470 | 470 | 520 | 115 | 406 | 71.5° |
74.5° |
70 | 578 |
370 |
973 | 45 | 378 | 513 |
| 490 | 490 | 535 | 130 | 406 | 72° |
74° |
70 | 584 | 370 | 980 |
45 |
383 | 529 |
| 520 | 520 | 550 | 150 |
406 |
72.5° | 73.5° |
70 |
595 |
370 |
991 |
45 |
392 | 550 |
| 550 | 550 | 575 | 175 | 410 | 73° | 73° |
70 |
605 |
370 |
1005 |
45 |
399 | 575 |
| 580 | 580 | 595 | 200 | 410 |
73° |
72.5° |
70 |
619 |
370 |
1019 |
45 |
406 | 599 |
