Material ：High modulus Toray T700/T800 carbon fiber
Size ： 450,480,510,540,570 mm
Fork ： Karbon Saber specify carbon fork
Headtube ：Straight 1 1/8" to 1 1/2"
Bottom bracket： BB86.5
Max tire clearance ：700*28C
Brake mount type： Disc brake
Dropout ：Front 9*100mm QR Rear 9*130mm QR
Test Standard：ISO4210
Warranty ：2 years

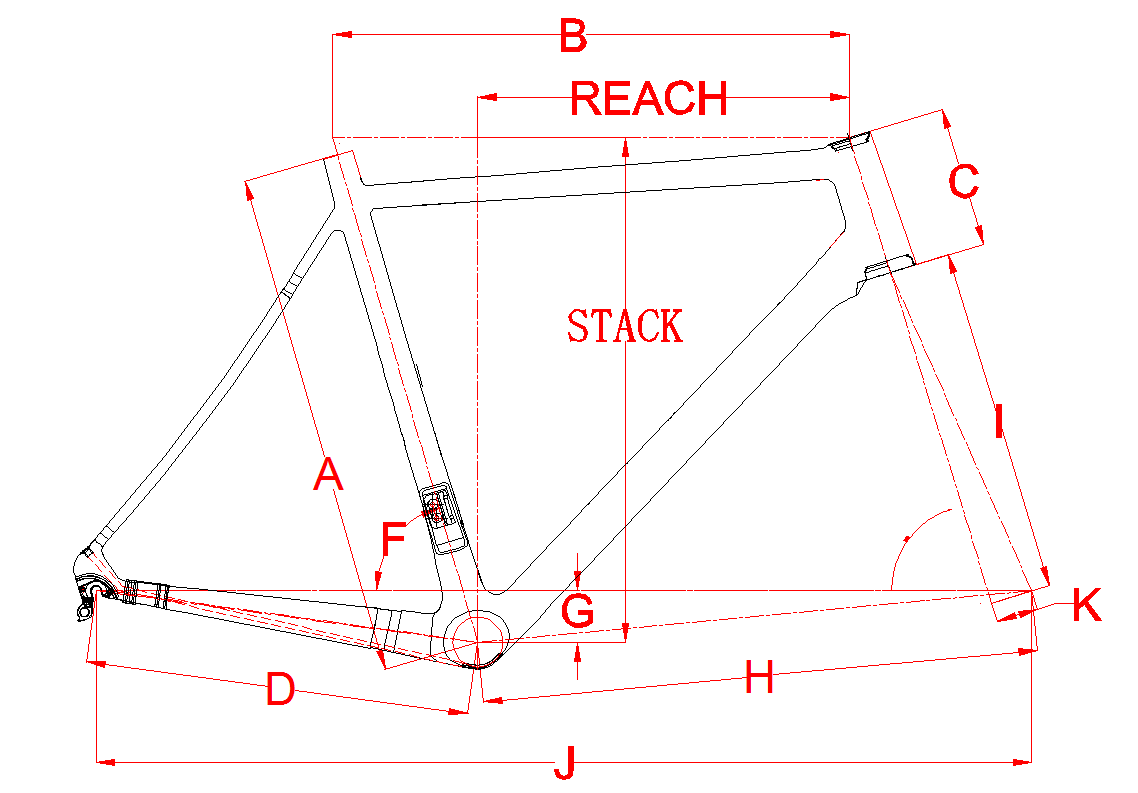

| SIZE | A | B | C | D | E | F | G | H | I | J | K | REACH | STACK |
| 450 | 450 | 505 | 115 | 410 | 71.5° | 75° | 55 | 570 | 370 | 978 | 45 | 371 | 499 |
| 480 | 480 | 515 | 125 | 410 | 72° |
74.5° |
55 | 571 |
370 |
975 | 45 | 373 | 510 |
| 510 | 510 | 530 | 136 | 410 | 72.5° |
74.5° |
55 | 581 | 370 | 985 |
45 |
384 | 522 |
| 540 | 540 | 550 | 150 |
410 |
73° | 74° |
55 |
593 |
370 |
999 |
45 |
396 | 537 |
| 570 | 570 | 570 | 175 | 410 | 73° | 73.5° |
55 |
608 |
370 |
1015 |
45 |
403 | 561 |
