Material ：High modulus Toray T700/T800 carbon fiber
Size ： 460,490,520,550,580
Headtube ：Straight 1 1/8" to 1 1/2"
Fork ： Karbon Saber specify carbon fork
Bottom bracket： BB86.5
Max tire clearance ：29*2.25 inch
Brake mount type： Disc brake
Dropout ：Front 12*142mm
Test Standard：ISO4210
Warranty ：2 years

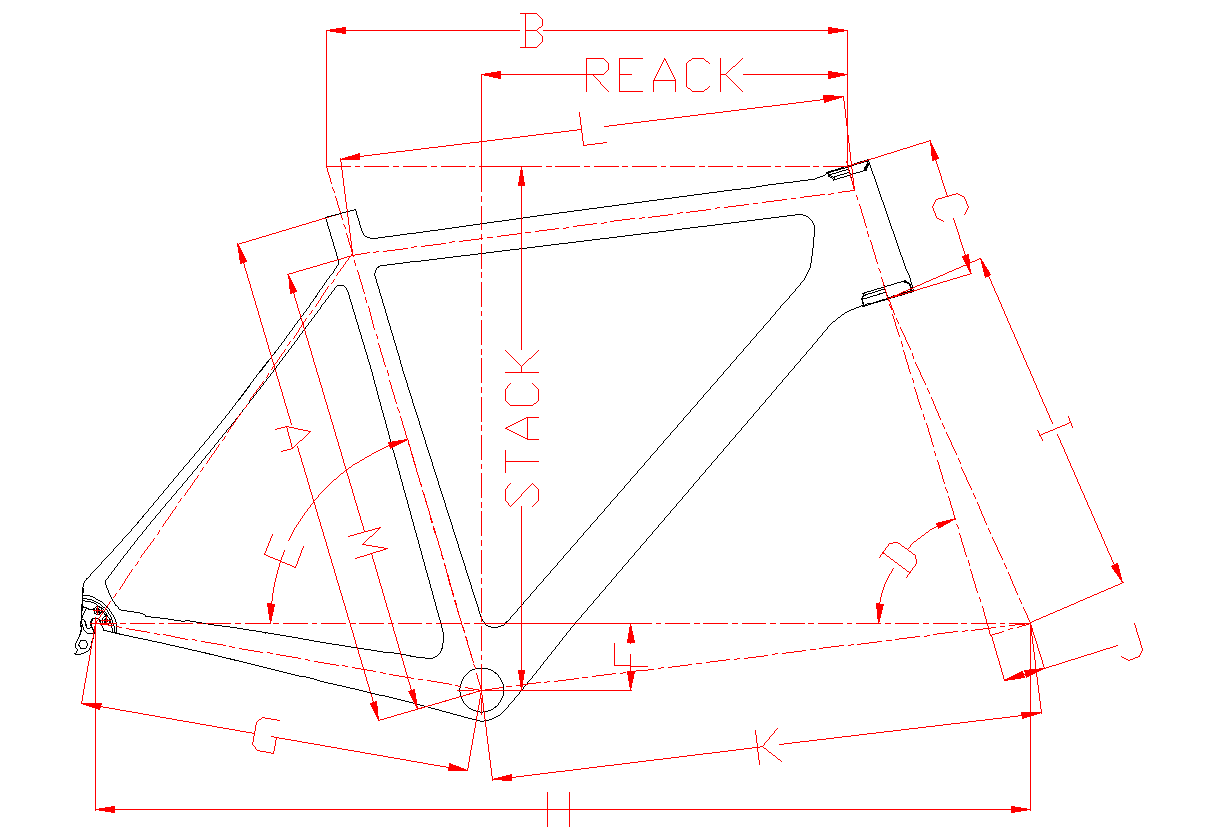

| SIZE | A | B | C | D | E | F | G | H | I | J | K | L | M | REACH | STACK |
| 460 | 460 | 515 | 110 | 72° | 75° | 70 | 410 | 970 | 370 | 43 | 571 | 500 | 412 | 378 | 513 |
| 490 | 490 | 530 | 125 | 72.5° | 74.5° |
70 |
410 | 976 | 370 | 43 | 577 | 515 | 443 | 383 | 529 |
| 520 | 520 | 545 | 145 | 73° | 73.5° | 70 | 410 | 978 | 368 | 43 | 578 | 530 | 475 | 382 | 548 |
| 550 | 550 | 565 | 165 | 73° |
73° |
70 |
410 |
993 |
370 |
43 | 593 | 552 | 507 | 392 | 567 |
| 580 | 580 | 590 | 190 |
73.5° |
72.5° | 70 |
410 |
1007 |
370 |
43 |
607 | 573 | 531 | 403 | 593 |
